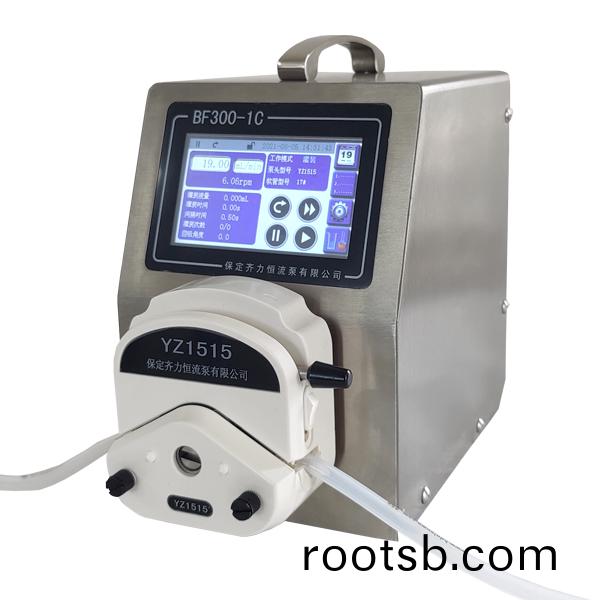

BF100-1C/BF300-1C/BF600-1C distributes the intelligent peristaltic pump, adopts the color LCD touch screen technology, the operation is simple. The interface is intuitive and clear. It is mainly used for accurate measurement and distribution of liquids, which can realize high-precision flow transmission. The distribution mode is used for liquid volume dispensing. When set to flow mode, it is equivalent to a flow-type peristaltic pump.
main feature
4.3-inch industrial-grade true color screen LCD display, intuitive interface, easy touch screen operation
Suitable for YZ1515, YZ2515, BZ25 pump heads
With independent full-speed button, it can quickly fill and empty the pipeline
The peristaltic pump can be controlled through the external control interface
With correction function, can ensure high accuracy through correction
RS485 communication uses Modbus protocol, which is easy to debug and use
304 stainless steel metal housing
Working mode: flow mode, filling mode, appointment mode
BF100-1C/BF300-1C/BF600-1C distributes the intelligent peristaltic pump, adopts the color LCD touch screen technology, the operation is simple. The interface is intuitive and clear. It is mainly used for accurate measurement and distribution of liquids, which can realize high-precision flow transmission. The distribution mode is used for liquid volume dispensing. When set to flow mode, it is equivalent to a flow-type peristaltic pump.
main feature
4.3-inch industrial-grade true color screen LCD display, intuitive interface, easy touch screen operation
Suitable for YZ1515, YZ2515, BZ25 pump heads
With independent full-speed button, it can quickly fill and empty the pipeline
The peristaltic pump can be controlled through the external control interface
With correction function, can ensure high accuracy through correction
RS485 communication uses Modbus protocol, which is easy to debug and use
304 stainless steel metal housing
Working mode: flow mode, filling mode, appointment mode
| BF100-1C | BF300-1C | BF600-1C | |
| Speed adjustment range | 0.01-100rpm | 0.01-300rpm | 0.01-600rpm |
|
Speed display resolution |
0.01rpm | ||
|
Display method |
4.3 inch industrial-grade true color LCD screen | ||
| Dispensed liquid volume | 0.01mL-9999.99mL | ||
| Dispensed liquid volume resolution | 0.01mL | ||
| Number of allocations | 0-999次(ci)(0 means infinite loop) | ||
| time interval | 0.1-9999.99秒(miao) | ||
| Time resolution | 0.01s | ||
| Suction angle | 0-360° | ||
| External control input interface | 0-5V,0-10V,4-20mA,0-10kHz | ||
| Communication Interface | RS485(MODBUS protocol) | ||
| Applicable power supply | Wide voltage AC100-240V, 50Hz/60Hz | ||
| Power consumption | ＜40W | ＜50W | ＜60W |
| working environment |
Temperature 0-40℃, humidity <80%, no condensation |
||
|
Dimensions |
205×158×242（mm） | ||
|
(Length×Width×Height) |
|||
|
Drive weight |
3.0kg | 3.2kg | |
| Protection level | IP31 | ||
|
Driver applicable pump head |
YZ1515、YZ2515、DG |
||
| Pump head | hose | Maximum flow (ml/min) | ||
| BF100-1C | BF300-1C | BF600-1C | ||
| YZ1515 | 13# | 380 | 1140 | 2280 |
| 14# | ||||
| 19# | ||||
| 16# | ||||
| 25# | ||||
| 17# | ||||
| 18# | ||||
| YZ2515 | 15# | 270 | 800 | 1600 |
| 24# | ||||
|
DG-(1、2、4、6) 6Scroll wheel |
Wall thickness: 0.8-1mm Inner diameter: ≤3.17mm |
48 | 48(It is recommended to use ≤100rpm) | |
|
DG-(1、2、4、6) 10Scroll wheel |
32 | 32(It is recommended to use ≤100rpm) | ||
