main feature

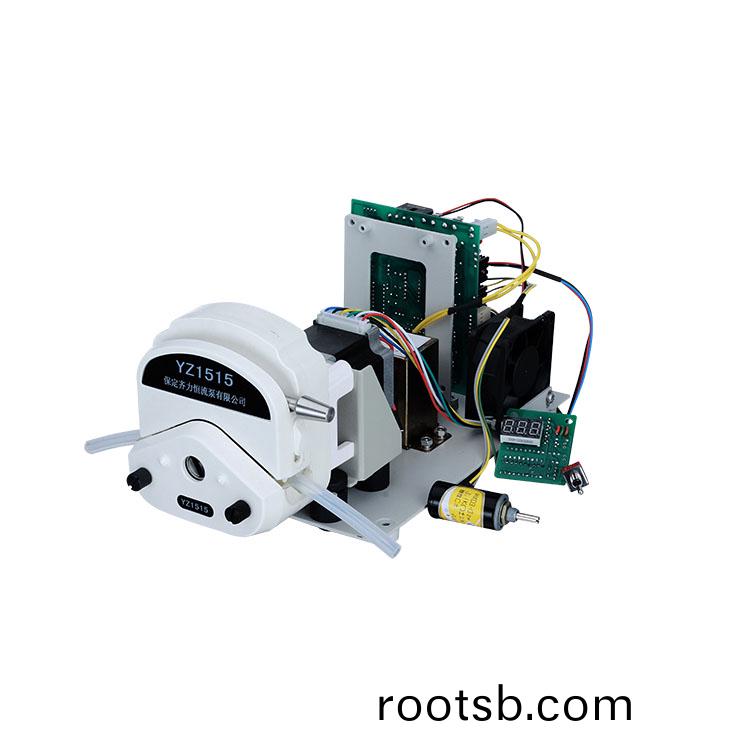

▲57 stepping motor drive, multiple units can be used in series, and the speed can be adjusted individually. .
▲Optional 0-5V, 0-10V, 4-20mA external control module, control start and stop, speed, direction controlled by a three-position switch
▲Beautiful appearance, small size, convenient installation, simple and intuitive operation, suitable for OEM supporting use.
| range of rotation | 1-300rpm, adjustable speed | Speed resolution | 1rpm |
| motor | 57 stepper motor | External speed control | 0-5V, 0-10V, 4-20mA optional |
| Display function | 3-digit LED digital tube displays the current speed | Power consumption | ≤45W |
| Applicable power supply | AC 220V | Applicable power supply | Ambient temperature 0～40℃, relative humidity <80% |
| Drive model | Applicable pump head | Applicable hose | Maximum reference flow | Number of channels |
| （ml/min） | ||||
| OEM05 | YZ1515 | 13#14#19#16#25#17#18# | ≤2280 | 1 |
| YZ2515 | 15#24# | ≤1740 | 1 | |
| DG係列 | Wall thickness≤1mm, inner diameter≤3.17mm | ≤48 |
1 |
